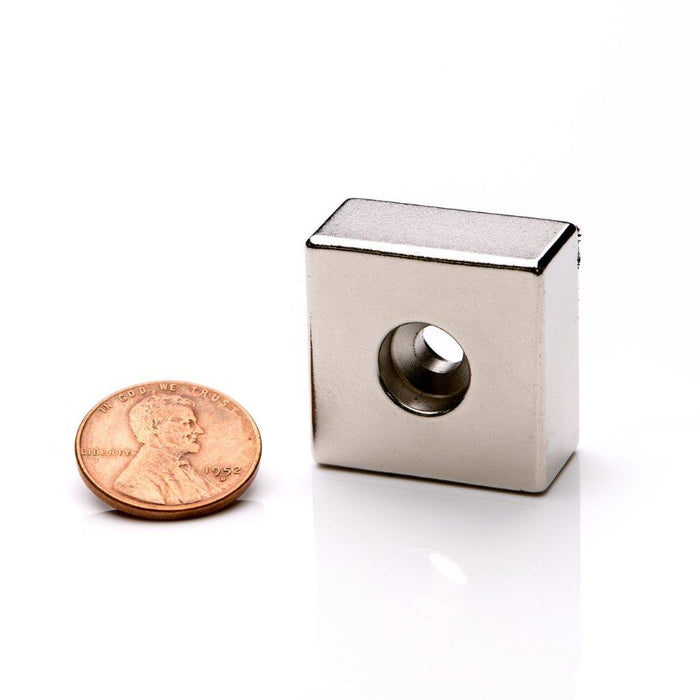

Neodymium Block Magnet 0.5" H x 1" W x 1" L - Grade N42, Nickel plated finish
SKU
Availability:
261 in stock, ready to be shipped
Original price
$8.64
-
Original price
$8.64
Original price
$8.64
$8.64
-
$8.64
Current price
$8.64
Have a question about this product?
Our team is ready to help!
Call 1.800.959.0047 or Email us
Looking to buy in bulk? Request quote
magnet, Neodymium 42, Block, 1.000'' x 1.000'' x 0.500'' - nickel plated - with #10 counter bore on center on both sides of part
Product Specifications
Magnet Type: Neodymium
Plating: Nickel Plated
Magnet Grade: 42
Magnet Shape: ["Block"]
Gauss: 4000
Pull Force: 48.50
Magnetic Field Orientation: 0.5
Max Working Temp: 176
Curie Temp: 590
Magnet Width (in): 1.000
Magnet Length (in): 1.000
Outer Diameter (mm): 0
Inner Diameter (mm): 0
Thickness (mm): 12.7
Magnet Width (mm): 25.4
Magnet Length (mm): 25.4
Magnet Through Holes: 0.200" through hole
Magnet Counter Bore Details: #10 counter bore on center on both sides of part
Plating: Nickel Plated
Magnet Grade: 42
Magnet Shape: ["Block"]
Gauss: 4000
Pull Force: 48.50
Magnetic Field Orientation: 0.5
Max Working Temp: 176
Curie Temp: 590
Magnet Width (in): 1.000
Magnet Length (in): 1.000
Outer Diameter (mm): 0
Inner Diameter (mm): 0
Thickness (mm): 12.7
Magnet Width (mm): 25.4
Magnet Length (mm): 25.4
Magnet Through Holes: 0.200" through hole
Magnet Counter Bore Details: #10 counter bore on center on both sides of part
