Magnets > Custom Magnet Assemblies
SHOP CUSTOM MAGNET ASSEMBLIES BELOW
For over 50 years Storch Magnetics has assisted industry professionals in application design, and engineering Custom Magnet Solutions. Magnets from simple to complex, prototype to production, with thousands of varied customer requirements met.
Click here for more information on Custom Assemblies that are available from Storch!
Tell us how we may help! For information or a quote, please contact us.
-
Ceramic Rectangular Magnet Assembly 0.56" H x 1.063" W x 4.5" L - Grade C8, Nickel plated finish
$5.84In stockmagnet, ceramic, assembly, 0.560'' x 1.063'' x 4.50'' - ceramic channel - 2 9/32'' holes on 4'' centers
-
AlNiCo Round Magnet Assembly 1.25" Diameter x 1" H - Grade A5
$16.63In stock(Revision: 0) magnet, AlNiCo 5, holding assembly, 1.250'' diameter x 1.000'' long - tapped hole 1/4''-20
-
Neodymium Round Magnet Assembly 0.984" Diameter x 0.276" H - Grade N38, Nickel plated finish
$10.59Out of stockmagnet, Neodymium, assembly, 25mm OD x 7mm Thick - nickel plated with #6 threaded stud. (10mm stud, 17mm overall height)
-
Ceramic Horseshoe Magnet Assembly 0.563" H x 2.375" W x 2.75" L - Grade C8, Nickel plated finish
$17.28In stockmagnet, ceramic, horseshoe holding assembly, 0.563'' x 2.375'' x 2.750'' - counter bore hole for 1/4'' cap screw
-
Ceramic Horseshoe Magnet Assembly 0.563" H x 2.375" W x 1.125" L - Grade C8, Nickel plated finish
$11.06In stockmagnet, ceramic, horseshoe holding assembly , 0.563'' x 1.125'' x 2.375'' - two #10-24 x 0.875 studs
-
Neodymium Round Magnet Assembly 1.42" Diameter x 0.29" H - Grade N8, Nickel plated finish
$6.48Out of stockNEO Assy 1.420 dia x .290'' lg, Nickel plated with 0.26 dia thru hole with 90 degree C-sink.
-
Ceramic Round Magnet Assembly 2.03" Diameter x 0.313" H - Grade C8, Nickel plated finish
$4.20In stockmagnet, ceramic, assembly, 2.030'' x 0.313'' Chrome - 0.188'' diameter through hole
-
Ceramic Rectangular Magnet Assembly 0.46" H x 1.045" W x 2.7" L - Grade C8, Nickel plated finish
$4.27In stockmagnet, ceramic, assembly, 0.460'' x 1.045'' x 2.700'' - ceramic channel - 2 3/16'' slots on 2 3/4'' centers
-
AlNiCo Horseshoe Magnet Assembly 2.187" H x 1.93" W x 2.5" L - Grade A5, Neoprene covered finish
$110.14Low stockBase Magnet 1-5/16x2-3/16 - Base Magnet Alnico 5 Neoprene Covered, 1 15/16'' x 2 1/2'' with 1/4 Thru Hole for Mounting, 45# Plus of Holding Capacity.
-
Ceramic Round Magnet Assembly 1.25" Diameter x 1.25" H - Grade C8
$20.34Low stockmagnet, ceramic, round holding assembly, 1.250'' diameter x 1.250'' long - 3-pole with 1/4''-20 tapped hole 0.250 '' deep
-
Neodymium Round Magnet Assembly 1" Diameter x 0.375" H - Grade N35
$21.50In stockmagnet, Neodymium, assembly, 1.000'' x 0.375'' - knurled stainless-steel cup - `20 lbs. holding value.
-
Neodymium Block Magnet Assembly 0.5" H x 1" W x 1" L - Grade N35
$108.00In stock(Revision: 0) magnet, Neodymium 35, V'-block assembly, 0.500'' x 1.000'' x 1.000'' - 2-pole - dwg: E-5379
-
Ceramic Round Magnet Assembly 1" Diameter x 0.75" H - Grade C8
$11.88Low stockmagnet, ceramic, round holding assembly, 1.000'' diameter x 0.750'' long - 3-pole with 1/4''-20 tapped hole 0.250 '' deep
-

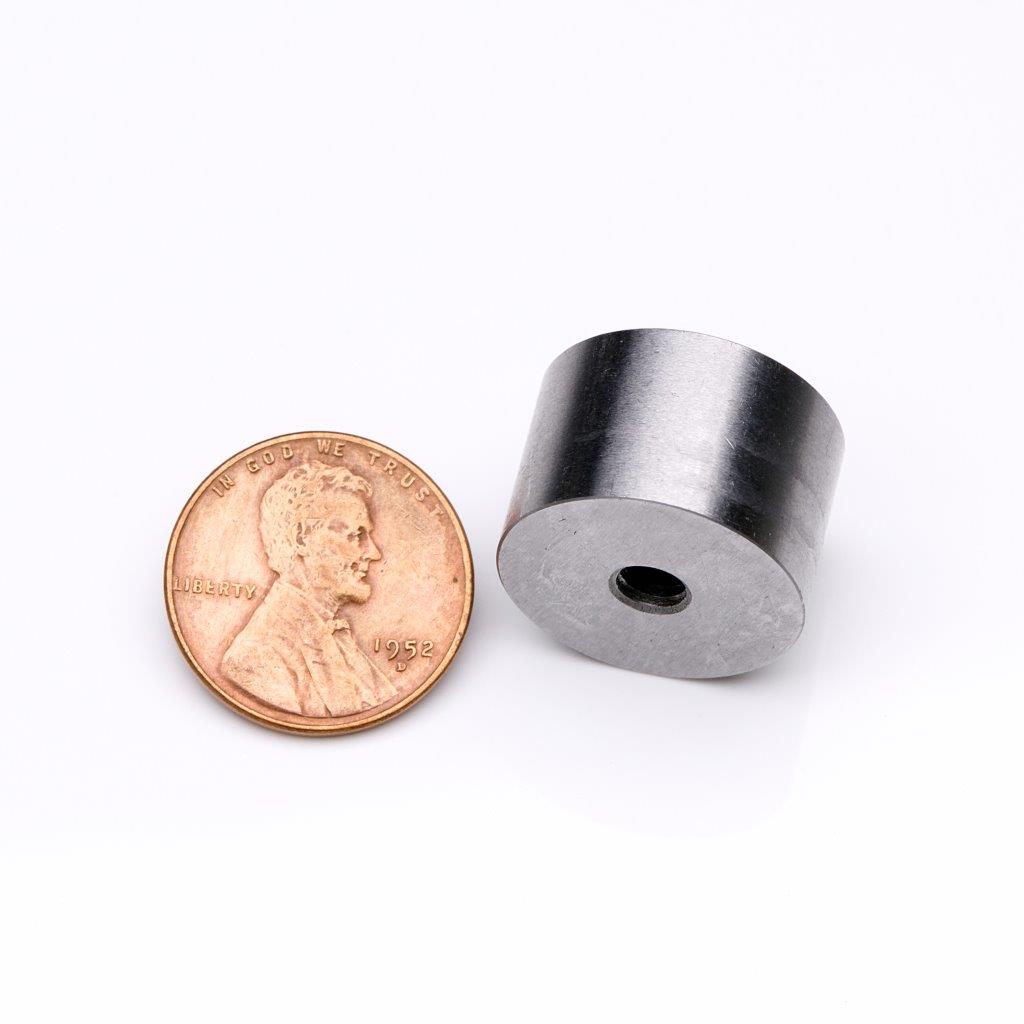

Neodymium Round Magnet Assembly 0.75" Diameter x 0.5" H - Grade N35
$12.60In stockmagnet, Neodymium, holding assembly, 0.750'' diameter x 0.500'' long - tapped hole 10-32.
-
Ceramic Round Magnet Assembly 2.03" Diameter x 0.313" H - Grade C8, Black poly coated finish
$5.99In stockmagnet, ceramic, assembly, 2.030'' x 0.313'' - black poly coated - 0.188'' diameter through hole
-
Neodymium Round Magnet Assembly 1" Diameter x 0.5" H - Grade N35
$15.46In stockmagnet, Neodymium, holding assembly, 1.000'' diameter x 0.500'' long - tapped hole 1/4''-20
