How Magnetic Sweepers Work, Explained Simply

A magnetic sweeper works by using a focused magnetic field to pull steel debris off the ground and hold it against the bottom of the sweeper. That is the basic function. The real difference between sweepers comes down to how well that magnetic field is designed, controlled, and delivered to the surface.

Inside the sweeper is a magnetic circuit. This is the combination of magnets and steel components that direct magnetic energy where it is needed. Instead of allowing the magnetic field to spread in all directions, the circuit concentrates the field downward toward the ground where the debris is located.

As the sweeper moves across the floor, pavement, gravel, or work area, the magnetic field attracts ferrous metal. Ferrous metal includes steel and iron debris such as nails, screws, bolts, wire, chips, and small metal fragments. These pieces are pulled up and held against the bottom of the sweeper as it passes over them.

The operator does not need to stop and manually collect debris during use. The sweeper does the collection as it moves.

Why Distance Matters

Distance has a major impact on magnetic sweeper performance. The closer the magnet is to the debris, the stronger the pull will be. Even a small increase in height can reduce pickup strength.

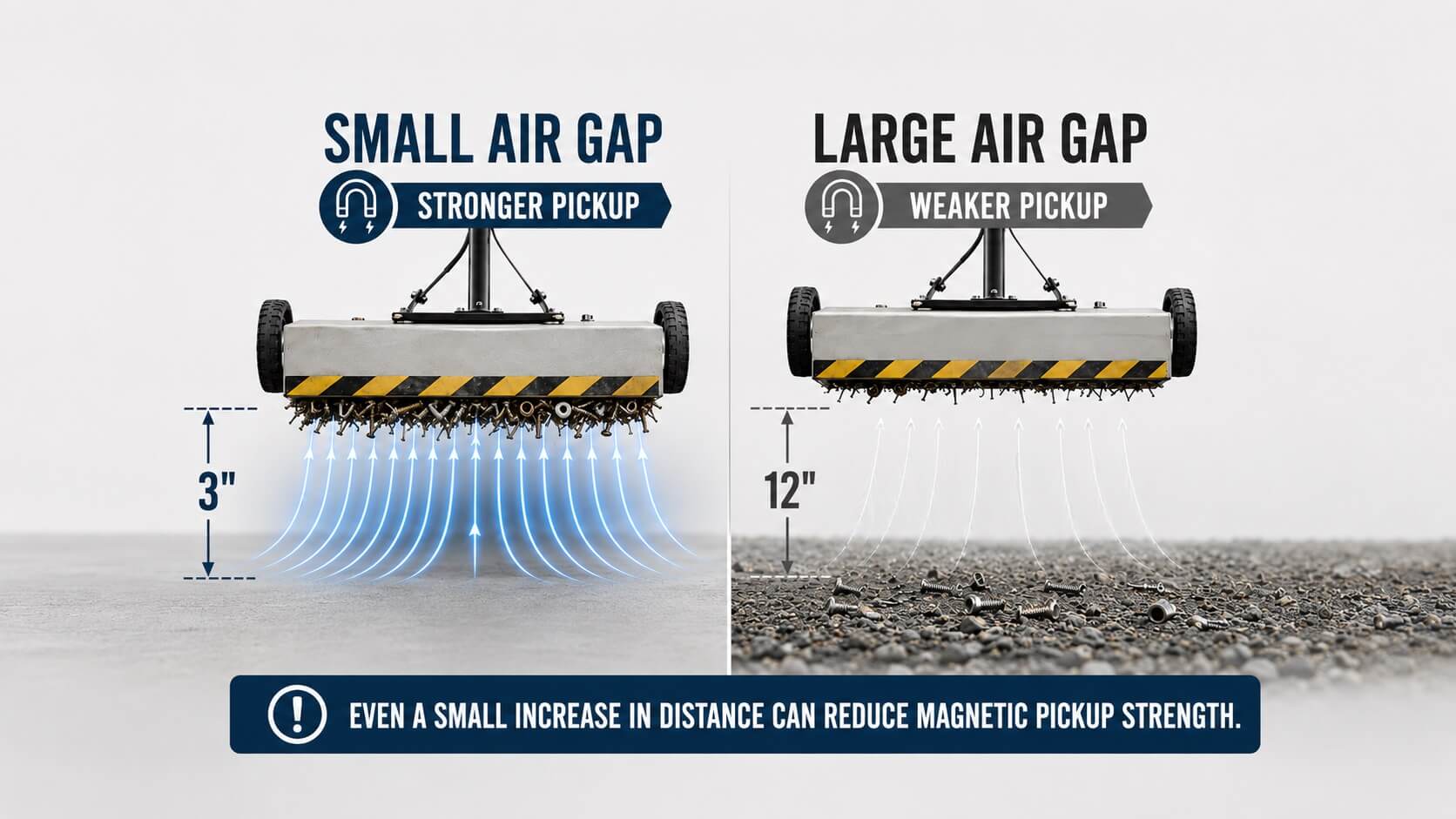

This space is often called the air gap. The air gap is the distance between the magnetic source and the metal being collected. It includes the clearance under the sweeper, along with anything between the magnet and the debris, such as dirt, gravel, uneven concrete, grass, or other surface conditions.

As the air gap increases, magnetic strength drops quickly. That is why industrial magnetic sweepers are designed to run low to the ground while still maintaining enough clearance to move safely across the surface.

A stronger sweeper is not just about using bigger magnets. It is about designing the magnetic circuit so the sweeper can maintain effective pickup across real-world surfaces.

How the Debris Is Released

Once steel debris is collected, it stays attached to the sweeper until it is released. Most industrial magnetic sweepers use a built-in release mechanism that allows the operator to drop the collected metal in a controlled area.

The magnets themselves are always active. They do not turn on and off like an electromagnet. Instead, the release system changes how the magnetic field is directed inside the sweeper housing. When the release is activated, the field is redirected so the collected debris drops away.

This makes the system simple, reliable, and easy to maintain. It also helps operators avoid touching sharp, dirty, or contaminated metal by hand.

What Affects Magnetic Sweeper Performance?

The main factors that affect performance are:

1. Magnetic strength
   A stronger magnetic field can collect more debris and handle greater air gaps.

2. Magnetic circuit design
   The way the magnets and steel components are arranged determines how effectively the magnetic field reaches the ground.

3. Sweeper height
   Lower sweepers typically pick up better because the magnet is closer to the debris.

4. Surface conditions
   Smooth concrete is easier to sweep than gravel, dirt, grass, or uneven pavement.

5. Debris size and shape
   Larger steel objects are usually easier to collect than fine particles, thin wire, or small chips.

6. Pickup width consistency
   A well-designed sweeper should collect debris across the full width of the unit, not just directly under certain magnet sections.

Ceramic Magnets vs. Higher-Performance Designs

Many magnetic sweepers use ceramic magnets because they are common, durable, and cost effective. Ceramic magnets can work well for general pickup applications.

However, higher-performance sweepers rely on better magnetic circuit design to deliver stronger and more consistent pickup. This matters most in demanding environments where debris is spread across wide areas, surfaces are uneven, or the material being collected includes smaller steel fragments.

Storch® SuperMag® magnetic sweepers are engineered with this in mind. The focus is not just on having magnets inside the sweeper. The focus is on building a magnetic system that performs consistently in real-world industrial conditions.

Simple Operation, Serious Results

Using a magnetic sweeper is straightforward. Move the sweeper across the area, allow the magnetic field to collect steel debris, then activate the release when it is time to clean off the collected material.

That simple process makes magnetic sweepers useful in a wide range of environments, including:

• Manufacturing plants

• Construction sites

• Warehouses

• Parking lots

• Roads and shoulders

• Airports

• Scrap yards

• Maintenance areas

Anywhere steel debris creates a safety, tire damage, or housekeeping concern, a magnetic sweeper can help reduce risk and improve cleanup efficiency.

FAQ: How Magnetic Sweepers Work

Do magnetic sweepers pick up all metal?

No. Magnetic sweepers only pick up ferrous metal, which means steel and iron. They will not pick up aluminum, brass, copper, plastic, wood, or most stainless steel.

Do magnetic sweepers need power?

Most magnetic sweepers do not need power. They use permanent magnets, which are always active. The release mechanism changes the magnetic field direction so collected debris can drop off.

Why does sweeper height matter?

Magnetic strength drops quickly as the distance between the magnet and the debris increases. A sweeper that runs closer to the surface will usually pick up better than one running too high.

Can magnetic sweepers work on gravel or grass?

Yes, but performance depends on the sweeper strength, debris size, and surface conditions. Gravel, grass, dirt, and uneven ground increase the air gap, which makes pickup more difficult.

What debris can a magnetic sweeper collect?

A magnetic sweeper can collect nails, screws, bolts, wire, staples, chips, shavings, small steel fragments, and other ferrous debris.

How do magnetic sweepers release the debris?

Most industrial magnetic sweepers use a release system that redirects the magnetic field inside the housing. When activated, the collected metal drops off without the operator needing to touch it.

The Key Takeaway

A magnetic sweeper works by using a controlled magnetic field to attract and hold ferrous metal debris. The concept is simple, but performance depends on more than just having a magnet.

The best sweepers combine magnetic strength, proper air gap control, durable construction, and an effective release system. When those elements work together, the result is a reliable tool that can quickly remove nails, screws, chips, and other steel debris from industrial and outdoor environments.
