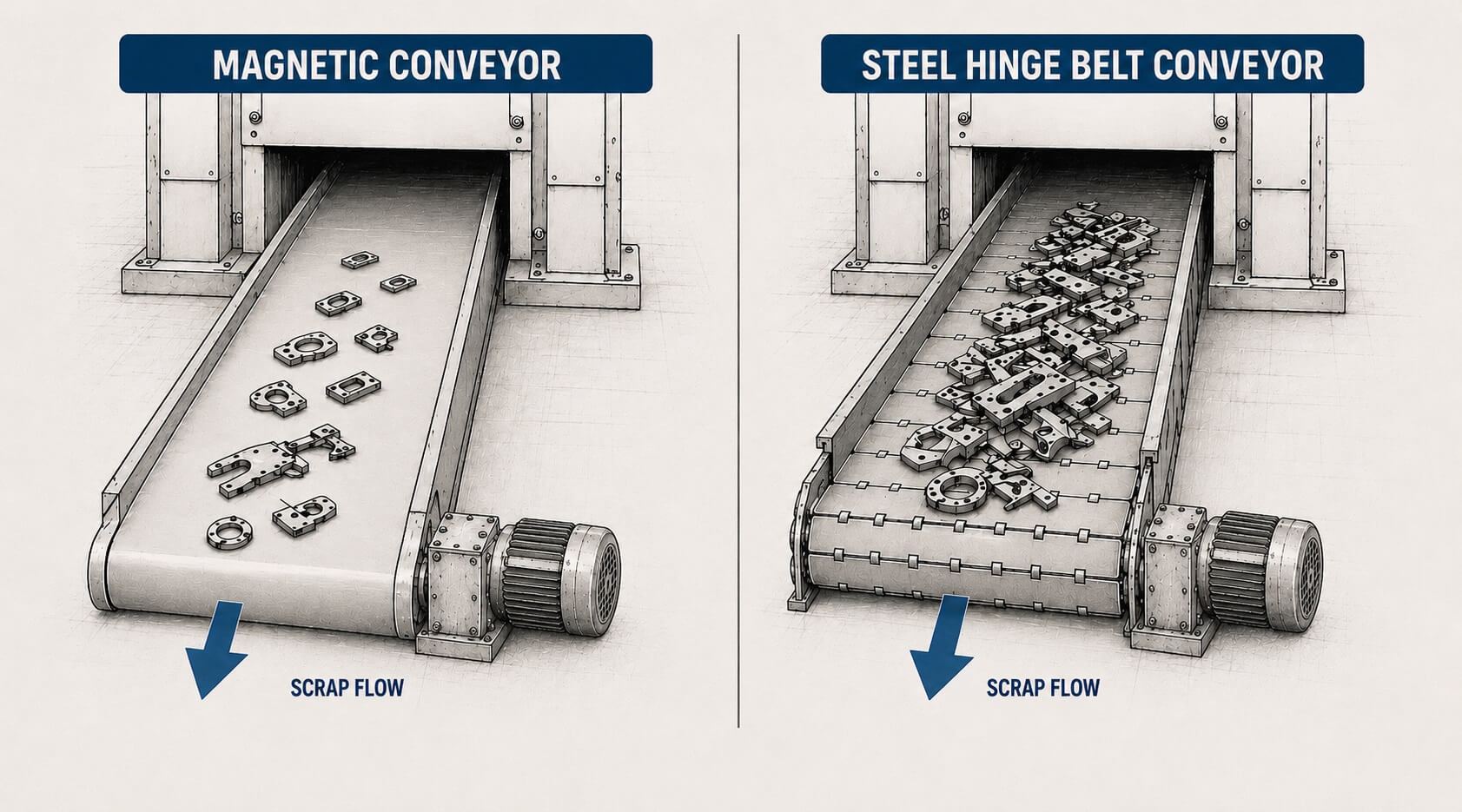

Magnetic Conveyor vs Steel Hinge Belt: Which Is Best for Stamping Scrap Removal?

Scrap Handling Challenges in Metal Stamping

In metal stamping operations, scrap handling is one of the most common sources of unplanned downtime. The system you choose directly impacts uptime, maintenance costs, and overall efficiency. Two of the most common solutions are magnetic conveyors and steel hinge belt conveyors. Both are widely used in stamping press environments, but they serve very different purposes depending on the material and the demands of your operation. If you are looking to improve scrap removal, reduce downtime, and support consistent production, understanding the differences between these two conveyor types is critical.

Material Type and Scrap Shape Considerations
The first and most important factor is the type of material you are running. A magnetic conveyor is designed for ferrous scrap such as steel and iron. It uses powerful internal magnets to move material along a sealed conveyor bed. The scrap is pulled across the surface without any exposed moving parts. This design removes many of the common failure points seen in other conveyor systems. A steel hinge belt conveyor, on the other hand, uses interlocking steel plates to carry scrap. It does not rely on magnetism, which allows it to handle both ferrous and non-ferrous materials including aluminum, stainless steel, and brass. If your operation runs mixed materials, this alone may dictate your decision. Scrap shape also plays a major role. Long stringers, tangled skeletons, or parts that tend to interlock can create bridging and inconsistent flow, which affects how well certain conveyor types perform.

Magnetic Conveyor Advantages and Limitations
From a reliability standpoint, magnetic conveyors are hard to beat when used in the right application. Because the system is enclosed and does not rely on exposed belts or chains, there is less wear and fewer opportunities for scrap to jam the system. This leads to consistent performance and very low maintenance requirements. Many operations choose magnetic conveyors specifically to support high uptime and reduce the need for operator intervention. If your goal is to keep presses running with minimal disruption, this is a strong option. However, magnetic conveyors perform best when material is presented in a controlled manner. Large surges of scrap or heavily nested material can reduce effectiveness if the system is not designed correctly.

Steel Hinge Belt Conveyor Advantages and Tradeoffs
Steel hinge belt conveyors offer flexibility, but that comes with tradeoffs. These systems are built to handle a wide range of scrap types and sizes, including heavier or more irregular pieces. That makes them useful in operations where scrap conditions change or where non-ferrous material is common. At the same time, the moving belt introduces wear points. Hinges, pins, and tracks can wear down over time. Scrap can also become lodged in the system, leading to jams or misalignment. This is especially common with sharp or irregular parts that can catch in hinge points or between wear surfaces. Maintenance is not optional with this style of conveyor. It needs to be planned and expected.

Cost Comparison Over the Life of the System
Cost is another area where the differences become clear over time. A steel hinge belt conveyor may come in at a slightly lower initial cost. In many cases, the initial cost difference is relatively small, often around ten percent. Over the life of the system, that advantage can disappear. It is common to see significant repair costs within a few years, especially related to belt replacement. In some cases, replacement costs can reach close to half of the original purchase price and repeat over the life of the equipment. A magnetic conveyor often requires a higher initial investment, but the long term cost is lower due to reduced maintenance and fewer repairs.

Safety Considerations Around Stamping Presses
Safety should also be part of the decision. Magnetic conveyors are fully enclosed, which limits exposure to moving components. This reduces the risk of pinch points and makes them easier to guard. Steel hinge belt conveyors have more exposed movement. Proper guarding and operator awareness are required to maintain a safe working environment. In high traffic areas around stamping presses, this can become an important factor.

System Integration and Scrap Flow Control
Another point that often gets overlooked is how well the conveyor integrates with the rest of the scrap handling system. Magnetic conveyors work best when paired with proper side guides and controlled scrap flow. When designed correctly, they keep scrap contained and moving in a consistent path. Steel hinge belt conveyors can also be effective, but they are more sensitive to how scrap enters the system. Poor control at the point of drop can lead to buildup, uneven loading, and increased wear.

How to Choose the Right Scrap Conveyor
Choosing between a magnetic conveyor and a steel hinge belt conveyor comes down to application. If you are running ferrous material and want the most reliable, low maintenance solution available, a magnetic conveyor is usually the better choice. It supports consistent operation, reduces downtime, and keeps maintenance demands low. If you are running non-ferrous material or need the flexibility to handle a mix of scrap types, a steel hinge belt conveyor is often required. It provides the versatility needed, but you should plan for ongoing maintenance and long term repair costs.

Final Takeaway Scrap Conveyor Selection
At the end of the day, scrap handling is not just about moving material out from under the press. It is about protecting uptime, controlling costs, and creating a system that supports production instead of slowing it down. The right conveyor choice will help you avoid interruptions, reduce manual cleanup, and keep your operation running the way it should.
If you are evaluating stamping press scrap removal, reviewing the material type, scrap shape, and flow conditions in detail before selecting equipment can make a significant difference. Small differences in the application often determine whether a system runs reliably or creates ongoing maintenance issues.

FAQ: Magnetic Conveyor vs Steel Hinge Belt Conveyor for Press Scrap

Q: What is the main difference between a magnetic conveyor and a steel hinge belt conveyor?
A: A magnetic conveyor uses internal magnets to move ferrous scrap along a sealed bed with no exposed moving parts. A steel hinge belt conveyor uses interlocking steel plates and can move both ferrous and non-ferrous materials. The key difference comes down to material type and how the scrap is handled.

Q: Can a magnetic conveyor handle non-ferrous materials like aluminum or stainless steel?
A: No. Magnetic conveyors only work with ferrous materials such as steel and iron. If your application includes aluminum, stainless steel, or brass, a steel hinge belt conveyor or another solution is required.

Q: Which conveyor requires less maintenance?
A: Magnetic conveyors typically require less maintenance because they have fewer exposed wear components and a fully enclosed design. Steel hinge belt conveyors have moving belts, pins, and tracks that wear over time and require regular maintenance.

Q: Are magnetic conveyors more reliable than hinge belt conveyors?
A: In the right application, yes. Magnetic conveyors are often more reliable when handling ferrous scrap in a controlled flow. However, performance depends on scrap shape, volume, and how material is introduced into the system.

Q: What types of scrap are best suited for a steel hinge belt conveyor?
A: Steel hinge belt conveyors are better suited for mixed materials, non-ferrous scrap, and applications with heavy, bulky, or irregular parts that may not move consistently on a magnetic system.

Q: How important is scrap shape in conveyor selection?
A: Scrap shape is critical. Long stringers, tangled skeletons, or interlocking parts can cause bridging or inconsistent flow. These conditions can impact both conveyor types and should be evaluated before selecting a system.

Q: What causes scrap conveyors to jam under a stamping press?
A: Jams are often caused by uncontrolled scrap flow, overloading, or scrap that nests and interlocks. Long stringers and irregular shapes can bridge across the conveyor or get caught in moving components. Proper system design, including infeed control and side containment, plays a major role in preventing these issues.

Q: When should you choose a magnetic conveyor over a hinge belt conveyor?
A: A magnetic conveyor is the better choice when you are handling ferrous scrap and want a low maintenance, enclosed system that supports consistent uptime. It is especially effective in applications with controlled scrap flow and where minimizing operator intervention is a priority.

Written by the engineering and applications team at Storch Magnetics, specializing in magnetic conveyors and industrial magnetic solutions.
