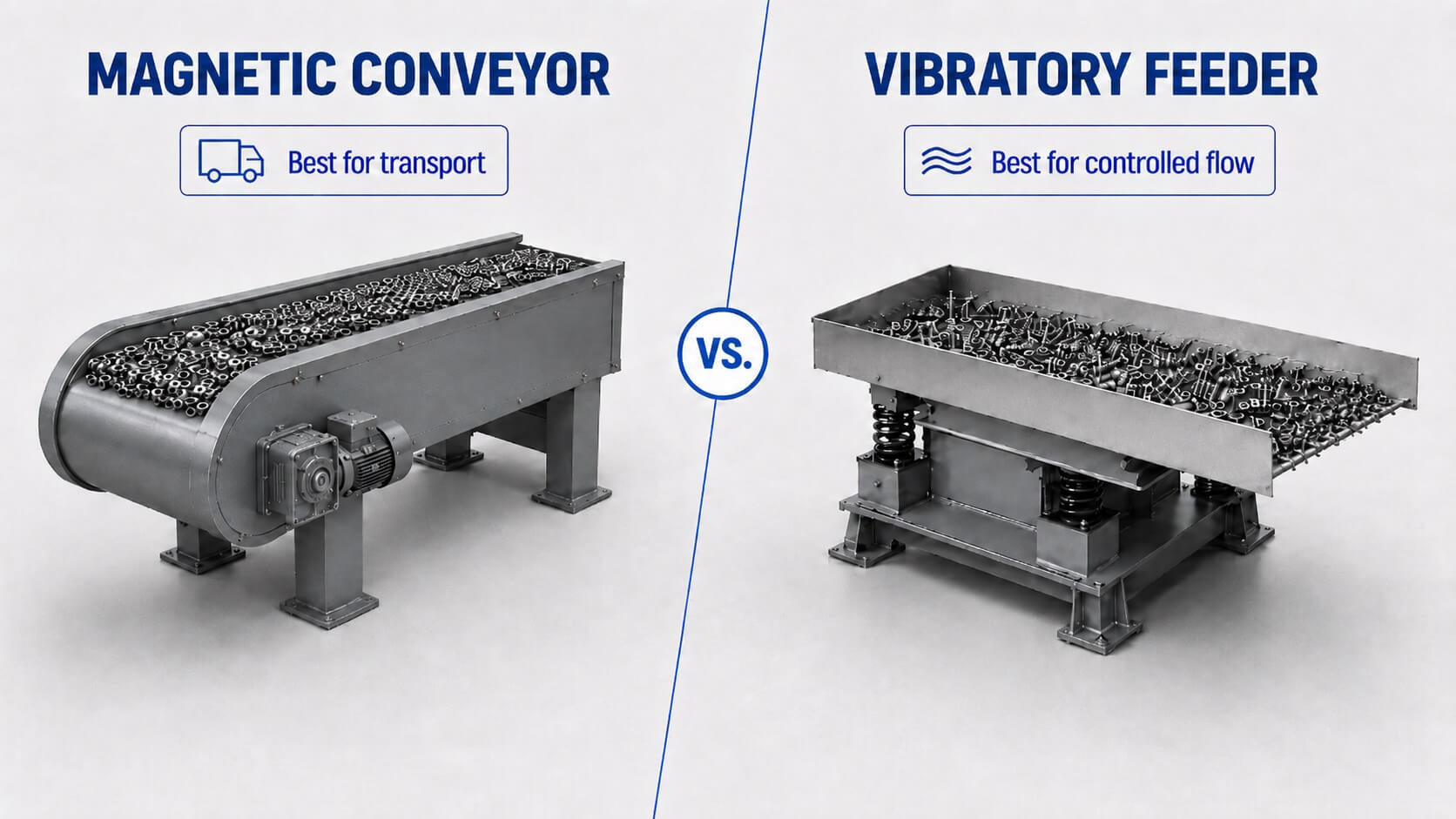

Magnetic Conveyor vs. Vibratory Feeder: When to Use Each

Choosing between a magnetic conveyor and a vibratory feeder comes down to one key question: are you trying to move material from point A to point B, or are you trying to control the flow of material with precision?

These two types of equipment can overlap in some applications, but they are designed to solve different problems. Understanding where each one performs best can help you design a system that runs more efficiently, consistently, and reliably.

A magnetic conveyor is primarily a transport device. It is designed to move ferrous metal parts, chips, or scrap along a controlled path, often over distance or elevation. The conveyor uses internal magnets to pull material along a sealed slider surface, making it well suited for moving parts out of machines, up inclines, into hoppers, or between operations.

A vibratory feeder is primarily a flow-control device. It uses vibration to move material forward at a controlled rate, typically while spreading or leveling the material across a surface. This makes it useful in applications where consistent feed rate, even distribution, or controlled part depth is important.

It is also important to distinguish a vibratory feeder from a shaker. A shaker is a linear motion device that indexes material forward using a controlled stroke. A vibratory feeder uses vibration to move and distribute material, allowing it to regulate flow with a higher level of consistency.

When to Use a Vibratory Feeder

One of the biggest advantages of a vibratory feeder is its ability to deliver a steady and even flow of material. When properly supplied from a hopper, bin, or upstream conveyor, a vibratory feeder can maintain a consistent output.

This is especially important in applications where part spacing, layer thickness, or feed rate must be controlled.

A common example is feeding fasteners onto a heat-treat belt. A vibratory feeder can spread parts across the width of the belt and help maintain a consistent depth. This supports more uniform processing and predictable results. In this type of application, consistency matters more than simply moving material quickly.

Vibratory feeders are also useful when material needs to be fed into weigh scales, packaging equipment, containers, assembly systems, or other downstream processes that require controlled flow.

Another advantage is material flexibility. Vibratory feeders are not limited to magnetic materials. They can handle metal parts, plastics, powders, bulk materials, and many other products across industries such as food processing, packaging, manufacturing, and assembly.

When to Use a Magnetic Conveyor

Magnetic conveyors perform best when the goal is to move ferrous material reliably over distance or elevation. They are commonly used to remove scrap from machines, transfer parts between operations, feed hoppers, or move parts into secondary equipment.

Because the material is held magnetically against a smooth slider surface, magnetic conveyors are especially useful when containment and controlled movement are important. They can move steel parts or scrap up inclines without relying on a traditional belt surface or open hinge belt design.

Magnetic conveyors are a strong fit for ferrous parts, stampings, machining chips, fasteners, and similar materials. However, they are limited to magnetic materials. If the parts are aluminum, brass, plastic, or non-magnetic stainless steel, a magnetic conveyor will not move them.

A magnetic conveyor can feed into a downstream process, but it does not provide the same level of metered flow as a vibratory feeder. Because the magnets are spaced along an internal moving chain, material can discharge in pulses as each magnet assembly cycles through the head section. This is acceptable for many transport applications, but it may not be ideal when the process requires a uniform feed.

Why Magnetic Conveyors and Vibratory Feeders Are Not Interchangeable

The difference between a magnetic conveyor and a vibratory feeder is not just the way each system moves material. The real difference is the job each system is designed to perform.

A magnetic conveyor is built to transport material. It takes ferrous parts or scrap from one area and moves them to another. This may include lifting material from below a machine, carrying it up an incline, or transferring it into a hopper or downstream process.

A vibratory feeder is built to control material flow. It helps regulate how much material moves forward, how evenly it is distributed, and how consistently it reaches the next process.

This distinction is important. If a process requires controlled feed rate, even part distribution, or consistent layer depth, a magnetic conveyor alone may not be the best choice. If the process only requires moving ferrous material from one location to another, a vibratory feeder may be unnecessary.

Why They Are Often Used Together

In many systems, the best solution is not choosing one or the other. It is using both pieces of equipment together.

For example, a vibratory feeder may be placed under a hopper to create a controlled flow of parts. That flow can then feed onto a magnetic conveyor, which transports the material up an incline into a bowl feeder, heat-treat system, container, or secondary operation.

In that setup, each piece of equipment does what it is designed to do. The vibratory feeder controls the flow. The magnetic conveyor handles the transport.

Magnetic conveyors are also commonly used to feed bowl feeders directly when the goal is to move ferrous parts efficiently from one location to another. The bowl feeder then handles orientation and final metering for assembly or packaging.

How to Choose Between a Magnetic Conveyor and a Vibratory Feeder

The application should drive the decision.

Use a magnetic conveyor when the main goal is to move ferrous material over distance, up an incline, out of a machine, or into another process.

Use a vibratory feeder when the main goal is to control flow, spread material evenly, regulate feed rate, or maintain consistent part depth.

Use both when the system needs controlled feeding and reliable transport. In many applications, this combination creates a more complete solution than either piece of equipment could provide on its own.

Choosing the Right Equipment for the Application

Magnetic conveyors and vibratory feeders are not interchangeable. They solve different problems.

A magnetic conveyor is best when the priority is moving ferrous material reliably from one point to another. A vibratory feeder is best when the priority is controlling how material flows into the next process.

Understanding that difference helps prevent feeding problems, uneven part distribution, unnecessary maintenance, and poor system performance. When each piece of equipment is applied correctly, the result is a more efficient system with better uptime and more predictable production.

FAQ: Magnetic Conveyors vs. Vibratory Feeders

What is the main difference between a magnetic conveyor and a vibratory feeder?

The main difference is function. A magnetic conveyor is designed to transport ferrous material from one location to another. A vibratory feeder is designed to control the flow of material into a process.

When should I use a magnetic conveyor?

Use a magnetic conveyor when you need to move ferrous parts, chips, stampings, or scrap over distance or elevation. Magnetic conveyors are commonly used for machine discharge, scrap removal, hopper feeding, and transferring steel parts between operations.

When should I use a vibratory feeder?

Use a vibratory feeder when you need consistent flow, even distribution, controlled part depth, or accurate feed rate. Vibratory feeders are commonly used before heat-treat belts, packaging systems, weigh scales, containers, and other processes that require steady material flow.

Can a magnetic conveyor be used as a feeder?

A magnetic conveyor can feed material into another process, but it is not a precision feeder. Because magnetic conveyors move material using spaced magnet assemblies, discharge can occur in pulses. This works well for many transfer applications, but it may not be ideal when a uniform feed is required.

Can a vibratory feeder move material up an incline?

A vibratory feeder can move material forward and can sometimes be designed with a slight incline, but it is generally not used for steep elevation changes or long-distance transport. If the goal is to move ferrous material up an incline, a magnetic conveyor is often the better choice.

Can magnetic conveyors and vibratory feeders be used together?

Yes. In many applications, they work well together. A vibratory feeder can control the flow of material from a hopper, while a magnetic conveyor can transport that material to the next process. This combination is useful when the system needs both controlled feeding and reliable movement.

Do magnetic conveyors work with non-magnetic materials?

No. Magnetic conveyors are designed for ferrous materials such as steel and iron. They will not move aluminum, brass, plastic, or non-magnetic stainless steel. For non-magnetic materials, a vibratory feeder, belt conveyor, or another mechanical handling system is usually required.
