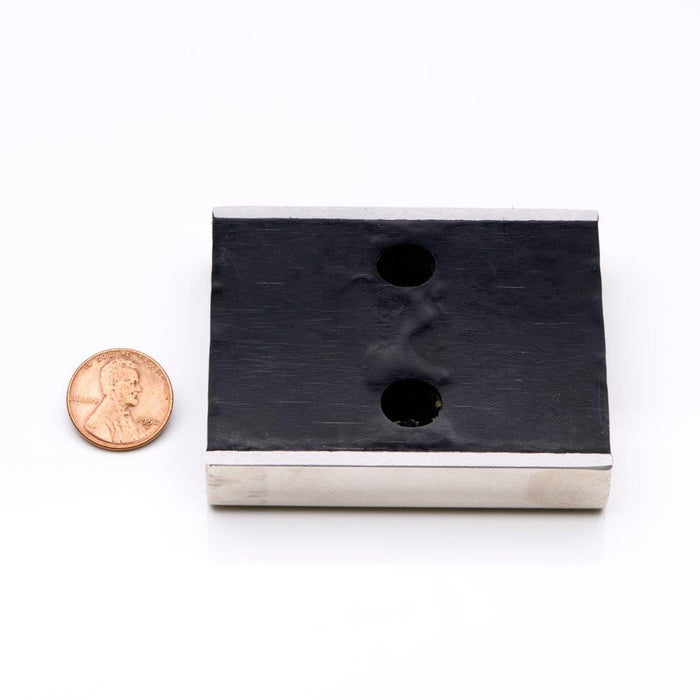

Ceramic Horseshoe Magnet Assembly 0.563" H x 2.375" W x 2.75" L - Grade C8, Nickel plated finish

SKU 1374
Availability:
70 in stock, ready to be shipped
Original price $17.28 - Original price $17.28
Original price
$17.28
$17.28 - $17.28
Current price $17.28

Have a question about this product?

Our team is ready to help!

Call 1.800.959.0047 or Email us

Looking to buy in bulk? Request quote

magnet, ceramic, horseshoe holding assembly, 0.563'' x 2.375'' x 2.750'' - counter bore hole for 1/4'' cap screw

Product Specifications

Magnet Type: Ceramic
Plating: Nickel Plated
Magnet Grade: 8
Magnet Shape: ["Horseshoe"]
Pull Force: 42.40
Magnetic Field Orientation: 0.563
Max Working Temp: 180
Curie Temp: 842
Magnet Width (in): 2.375
Magnet Length (in): 2.750
Outer Diameter (mm): 0
Inner Diameter (mm): 0
Thickness (mm): 14.3002
Magnet Width (mm): 60.325
Magnet Length (mm): 69.85
Magnet Through Holes: 0.281'' diameter through hole
Magnet Counter Bore Details: counter bore hole for 1/4'' cap screw
