Wet, oily machining scrap creates a different set of challenges than dry metal scrap. Coolant carryover, slippery chips, fines, and oil-coated material can quickly turn a standard conveyor into a maintenance problem if the system is not designed for the application.

The goal is not only to move scrap out of the machine. The conveyor also needs to help manage fluid, reduce carryover, prevent buildup, and keep the system running cleanly. In many machining applications, the right conveyor can improve coolant recovery, reduce mess around the machine, and lower the amount of scrap and fluid being carried into bins or downstream equipment.

Choosing the best conveyor for wet, oily machining scrap starts with a few key questions:

1. Is the scrap ferrous or non-ferrous?

2. Are you handling chips, fines, slugs, turnings, or mixed scrap?

3. Does coolant need to drain back into the machine or filtration system?

4. Is the material likely to stick, clump, or build up on flat surfaces?

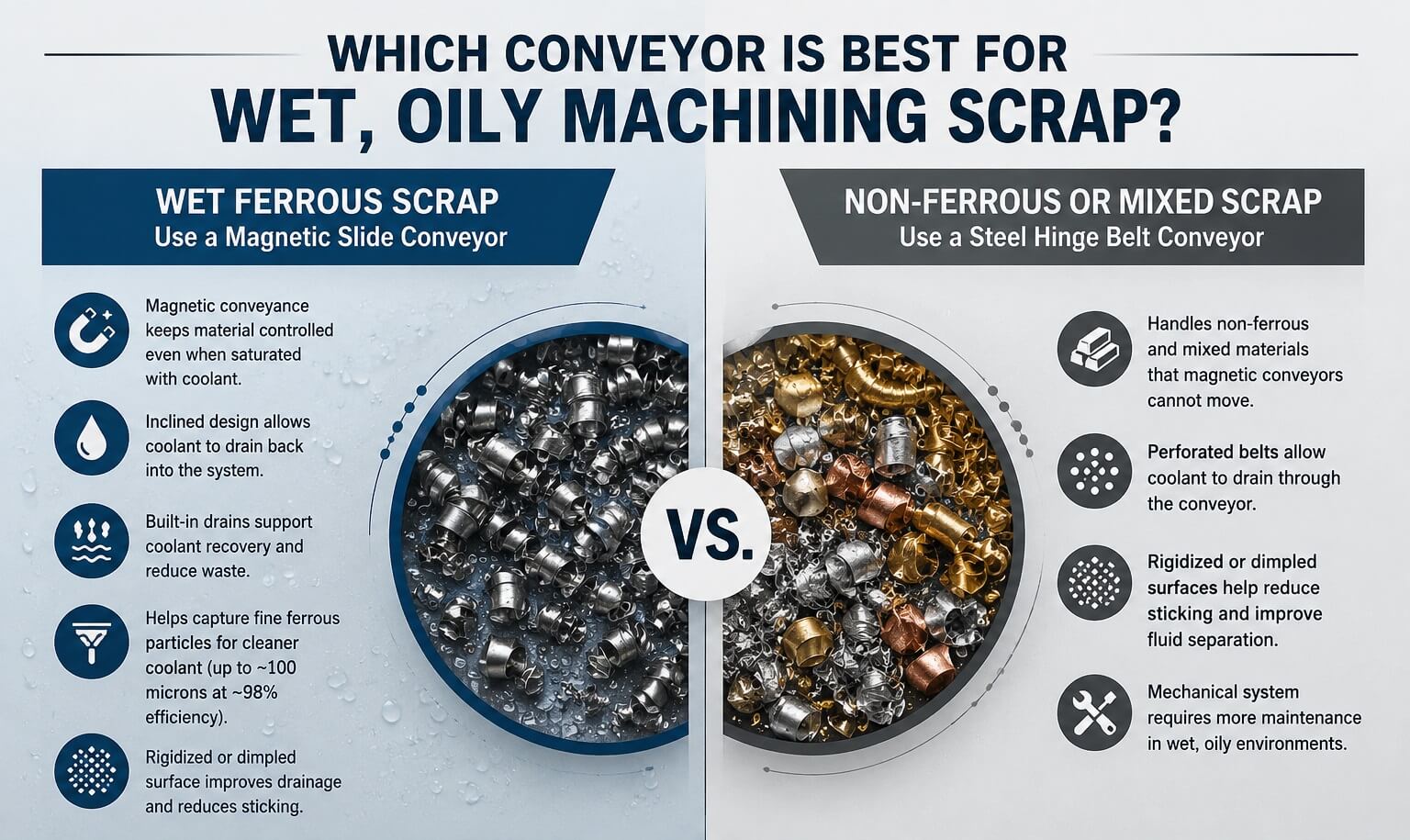

For wet ferrous machining scrap, a magnetic slide conveyor is often one of the most effective solutions. For non-ferrous or mixed material scrap, a steel hinge belt conveyor is usually the more practical choice.

Why Wet, Oily Machining Scrap Is Difficult to Handle

Machining scrap is not always easy-flowing material. Chips and fines can become saturated with coolant or oil, which changes how they behave on a conveyor. Instead of moving cleanly, they may stick together, cling to flat surfaces, or carry excess fluid with them.

This can create several problems:

• Coolant is carried out of the machine with the scrap

• Chips collect in low spots or corners

• Fines build up around moving parts

• Scrap sticks to conveyor surfaces

• Maintenance requirements increase

• Fluid waste and housekeeping issues become worse

A conveyor for wet machining scrap needs to do more than simply transport material. It should also support drainage and help separate coolant from the scrap wherever possible.

Best Option for Wet Ferrous Scrap: Magnetic Slide Conveyor

For wet, oily ferrous machining scrap, a magnetic slide conveyor is often the best option. These conveyors use internal magnets to move steel or iron scrap along a sealed slider surface. The magnets travel underneath the surface and pull the ferrous material forward without relying on an exposed belt, hinge, or cleat to physically carry the scrap.

This design is especially useful in wet applications because the scrap remains controlled by the magnetic field even when coated with coolant or oil. Instead of slipping or sliding unpredictably, the ferrous material follows the magnet path through the conveyor.

Magnetic slide conveyors are commonly used for:

• Steel chips

• Ferrous fines

• Small stampings

• Slugs

• Turnings

• Oily scrap from machining centers

• Scrap that needs coolant separation before discharge

Because the moving components are enclosed, magnetic conveyors can also reduce exposure to abrasive chips and wet material. This helps lower maintenance compared with mechanical conveying systems where chains, hinges, and pins are directly exposed to the scrap stream.

Coolant Drainage and Recovery

One of the biggest advantages of a magnetic conveyor in wet machining applications is the ability to run on an incline. As the conveyor carries ferrous scrap upward, gravity helps coolant drain away from the material.

This can reduce the amount of fluid carried into the scrap bin and allow more coolant to return to the machine or filtration system.

In a well-designed system, drains can be built directly into the conveyor structure. These drains can help capture coolant and direct it back toward the machine, tank, or filtration equipment. This improves fluid recovery and helps keep the surrounding area cleaner.

For shops running large volumes of wet scrap, this can make a meaningful difference. Less coolant leaving the machine means less waste, less mess, and better overall process efficiency.

Magnetic Conveyors Can Also Support Coolant Filtration

Another benefit of magnetic conveyors is that they can capture and move fine ferrous particles. In some wet machining applications, the conveyor can act as a form of magnetic filtration by removing small ferrous fines from the coolant stream.

This is useful because fine metal particles can stay suspended in coolant and recirculate through the machine. Over time, this can affect coolant quality, tool life, and surface finish.

A magnetic conveyor can help separate ferrous fines from the coolant as the material moves through the system. Depending on the application and conveyor design, this can provide efficient removal of fine ferrous particles and help improve the cleanliness of recirculated coolant.

This does not replace every type of filtration system, but it can be a valuable part of the overall coolant management process.

Why Conveyor Surface Design Matters

Wet and oily scrap can create surface tension issues. Small slugs, fines, and chips may cling to a flat steel surface instead of releasing cleanly. This is especially common when coolant or oil creates a film between the material and the conveyor surface.

One way to improve performance is to use a rigidized or dimpled metal surface.

A rigidized surface has a raised, patterned texture. This reduces the amount of direct contact between the scrap and the conveyor surface. By breaking up surface tension, the pattern helps coolant move away from the material more easily.

This can help with:

• Better drainage

• Less sticking

• Cleaner discharge

• Reduced buildup

• Improved coolant separation

Rigidized or dimpled surfaces can be useful on magnetic conveyor slider beds and, in some cases, mechanical conveyor surfaces as well.

When a Steel Hinge Belt Conveyor Is the Better Choice

A magnetic slide conveyor only works with ferrous material. If the scrap is aluminum, brass, copper, non-magnetic stainless steel, or a mixed material stream, a magnetic conveyor will not reliably move the material.

In these cases, a steel hinge belt conveyor is usually the better option.

Steel hinge belt conveyors physically carry scrap using interlocking steel belt plates. They are versatile and can handle a wider range of materials than a magnetic conveyor. This makes them useful for applications involving non-ferrous or mixed machining scrap.

For wet applications, hinge belt conveyors can be designed with:

• Solid belts

• Perforated belts

• Cleats

• Side wings

• Coolant pans

• Drainage areas

• Dimpled or textured belt surfaces

A perforated belt can allow coolant to drain through the belt as the scrap moves. This helps reduce fluid carryover. A solid belt may be used when containment is more important or when the material requires full support.

The Maintenance Tradeoff with Hinge Belt Conveyors

Steel hinge belt conveyors are highly versatile, but they usually require more maintenance than magnetic slide conveyors in wet machining applications.

That is because the belt, pins, hinges, chains, and sprockets are directly involved in moving the material. Wet, oily, and abrasive scrap can accelerate wear on these components.

Common maintenance concerns include:

• Chip buildup in hinges

• Wear on pins and chain

• Coolant contamination around moving parts

• Jammed or packed fines

• Belt damage from heavy or sharp scrap

• Higher inspection requirements

This does not mean a hinge belt conveyor is the wrong choice. In many applications, it is the correct choice. However, the design needs to account for wet scrap, fluid drainage, material size, and maintenance access.

Magnetic Conveyor vs. Hinge Belt Conveyor for Wet Scrap

The best choice depends heavily on material type.

Choosing the Right Conveyor Design

The conveyor should be selected around the actual scrap condition, not just the machine type. Two machining centers may produce very different scrap depending on the material, tooling, coolant flow, and cutting operation.

Important design considerations include:

• Material type

• Chip size and shape

• Volume of scrap

• Amount of coolant or oil

• Incline angle

• Discharge height

• Drainage requirements

• Available floor space

• Maintenance access

• Whether the scrap is ferrous, non-ferrous, or mixed

For ferrous wet scrap, a magnetic slide conveyor can provide strong advantages because it moves material without exposing a mechanical belt to the scrap stream. For non-ferrous or mixed scrap, a properly designed steel hinge belt conveyor is typically the practical solution.

Final Recommendation

For wet, oily ferrous machining scrap, a magnetic slide conveyor is often the best conveyor choice. It provides controlled scrap movement, supports coolant drainage, helps reduce fluid carryover, and can assist with ferrous fines separation.

For non-ferrous or mixed machining scrap, a steel hinge belt conveyor is usually the better option because it physically carries the material instead of relying on magnetic attraction.

In either case, the conveyor should be designed with fluid management in mind. Drainage, surface texture, incline angle, and discharge design all affect how well the system performs. The right conveyor does more than move scrap out of the machine. It helps keep coolant in the process, reduces waste, and supports cleaner, more efficient machining operations.

FAQ: Wet, Oily Machining Scrap Conveyors

What is the best conveyor for wet ferrous machining scrap?

A magnetic slide conveyor is often the best choice for wet ferrous machining scrap. It uses internal magnets to move steel or iron scrap along a sealed surface while allowing coolant to drain away from the material.

Can a magnetic conveyor handle oily chips?

Yes. A magnetic conveyor can handle oily ferrous chips as long as the material is magnetic and the conveyor is properly designed for the chip size, volume, incline, and coolant conditions.

What conveyor should be used for aluminum machining scrap?

Aluminum is non-ferrous, so a magnetic conveyor will not move it. A steel hinge belt conveyor is typically the better choice for aluminum chips or other non-ferrous machining scrap.

Why is coolant drainage important in a scrap conveyor?

Coolant drainage helps reduce fluid carryover into scrap bins, lowers coolant waste, improves housekeeping, and can help return valuable fluid back to the machine or filtration system.

What is a perforated hinge belt used for?

A perforated hinge belt allows coolant to drain through the belt while scrap is being carried. This can help reduce fluid carryover in wet machining applications.

Do wet machining chips require more conveyor maintenance?

They can. Wet, oily chips can cause buildup, sticking, and accelerated wear, especially in mechanical conveyor systems with exposed hinges, pins, chains, and sprockets.

Can a conveyor help with coolant filtration?

In ferrous applications, a magnetic conveyor can help remove fine magnetic particles from the coolant stream. This can support cleaner coolant and reduce the amount of ferrous fines recirculating through the system.

Written by the engineering and applications team at Storch Magnetics, specializing in magnetic conveyors and industrial magnetic solutions.
