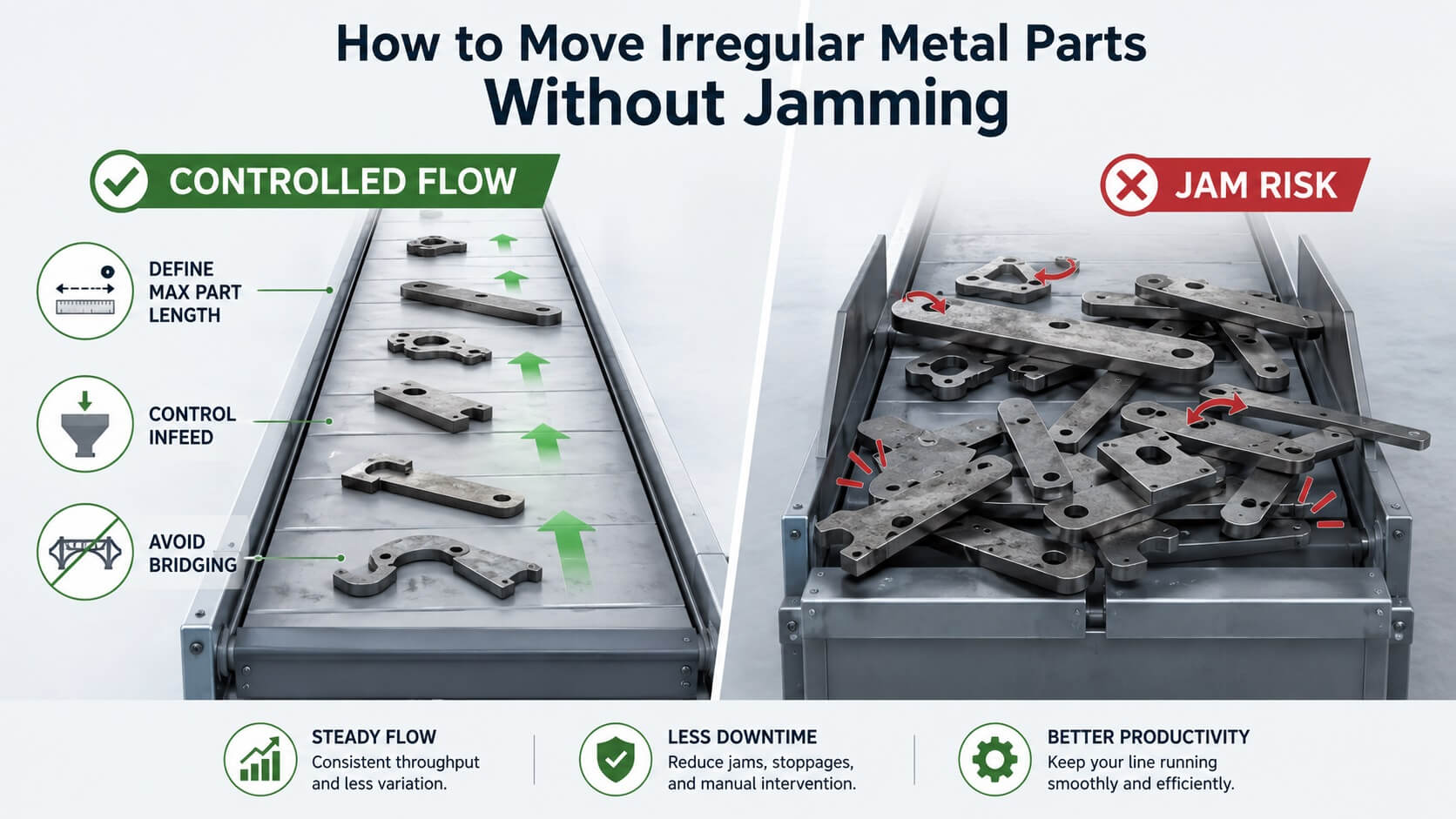

How to Move Irregular Metal Parts Without Jamming

Moving irregular metal parts without jamming is one of the more difficult challenges in industrial material handling. Unlike uniform scrap or consistent part sizes, irregular parts can vary in shape, length, thickness, weight, and orientation. That variation creates opportunities for parts to rotate, overlap, bridge, stack, or stop moving altogether.

The solution is not just choosing a conveyor. The conveyor needs to be designed around the full range of parts being moved.

For ferrous parts, magnetic slide conveyors can be a strong option because they provide controlled movement across a smooth, enclosed surface. In other applications, especially when part sizes are unknown or likely to change, a mechanical conveyor may offer more flexibility. The right answer depends on the material, part geometry, feed conditions, and how much variation the system needs to handle.

Start by Defining the Full Range of Part Sizes

The most important step in preventing jams is understanding the full range of parts that will run on the conveyor. This includes the smallest parts, the largest parts, and any unusual shapes that may appear during production.

Many conveyor problems happen when a system is designed around an average part size instead of the actual extremes. A conveyor may work well during normal production but begin to jam when a longer, thinner, heavier, or more awkward part enters the system.

Before selecting a conveyor, define:

• Minimum part size
• Maximum part size
• Longest part length
• Part thickness range
• Part weight range
• Material type
• Production rate
• How parts enter the conveyor
• Whether part sizes may change in the future

This information helps determine whether the conveyor can move the parts consistently without bridging, nesting, or becoming trapped.

Why Part Length Matters

Part length is especially important when moving irregular ferrous parts on a magnetic conveyor.

Magnetic slide conveyors use internal magnets attached to a moving chain. These magnets travel underneath a smooth slider surface and pull ferrous parts along the conveyor. If a part is too long for the conveyor design, it can span across multiple magnetic zones at the same time.

When that happens, one magnetic zone may be trying to move the part forward while another is still holding it in place. This can cause the part to hesitate, drag, twist, or stop moving. Once one part stops, other parts can build up behind it and create a jam.

For example, if a conveyor is designed to handle parts up to 22 inches long, but the actual application includes parts that are 24 inches long, that difference may be enough to create bridging issues. This is why the maximum part length needs to be identified during the design phase.

Why Magnetic Conveyors Work Well for Smaller Ferrous Parts

Smaller parts often work very well on magnetic slide conveyors. Because the conveyor has a smooth, enclosed slider bed, small ferrous parts are contained as they move. There are no belt openings, hinge gaps, or exposed moving components for small pieces to fall into.

This can make magnetic conveyors a strong fit for applications where small steel parts, stampings, slugs, clips, blanks, or scrap pieces need to be moved cleanly and consistently.

The sealed design also reduces common jam points found in some mechanical conveyor systems. Instead of relying on a belt surface with openings or moving joints, the magnetic field carries the material across a smooth surface.

Where Mechanical Conveyors Can Create Issues

Mechanical conveyors, such as steel hinge belt conveyors, can be effective in many applications, but they need to be selected carefully when small or irregular parts are involved.

On larger pitch hinge belts, small parts can sometimes fall into openings or become lodged between moving components. If small and large parts are mixed together, the smaller pieces are often the ones that create maintenance issues.

This does not mean a hinge belt conveyor is wrong. It means the belt style, pitch, cleat spacing, sidewalls, and loading conditions need to match the part geometry.

When a Steel Hinge Belt Conveyor May Be the Better Option

A magnetic conveyor is a strong choice when the parts are ferrous and the size range is clearly defined. However, it may not always be the best standalone solution when part sizes are unknown, highly variable, or expected to change over time.

In those situations, a steel hinge belt conveyor with positive carrying features may provide more flexibility. Cleats or other belt features can be added at specific intervals to physically carry parts forward and reduce sliding or drifting.

These intervals might be set at one inch, three inches, or larger spacing depending on the application. The goal is to make sure irregular parts are moved forward in a controlled way instead of being allowed to rotate, slide backward, or collect in one area.

This type of system may require more maintenance than a magnetic conveyor, but it can be a better fit when the part mix is unpredictable.

Control How Parts Enter the Conveyor

Even a well-designed conveyor can jam if the material is introduced poorly.

Irregular parts that are dumped randomly onto a conveyor are more likely to overlap, stack, or land in difficult orientations. This can create problems before the conveyor even has a chance to move the material correctly.

Chutes, guides, hoppers, or controlled feed systems can help improve how parts enter the conveyor. The goal is to reduce random part orientation and prevent large piles from forming at the infeed.

A controlled infeed can help:

• Reduce part overlap
• Prevent bridging
• Keep parts moving in the correct direction
• Improve conveyor loading
• Reduce jams at transition points
• Improve overall system reliability

For difficult applications, the infeed design may be just as important as the conveyor itself.

Match the Conveyor to the Application

The best conveyor for irregular metal parts depends on how much variation the system needs to handle.

A magnetic slide conveyor is often a good fit when:

• The parts are ferrous
• The part size range is clearly defined
• Smaller parts need to be contained
• A smooth, enclosed conveying surface is preferred
• Reduced jam points are important
• The application benefits from controlled magnetic movement

A steel hinge belt conveyor may be a better fit when:

• Part sizes are unknown or likely to change
• Longer parts may be introduced later
• The material is non-ferrous or mixed
• Positive mechanical carrying features are needed
• The system needs greater tolerance for unpredictable part geometry

In some cases, the right solution may also include chutes, guides, transfer points, or controlled feeding equipment to help the conveyor perform properly.

Final Thoughts

Moving irregular metal parts without jamming comes down to understanding the full application before choosing the conveyor. Part size, part length, material type, loading method, and future production changes all matter.

Magnetic conveyors can be highly effective for irregular ferrous parts when the system is designed around the actual part range. They keep material contained, reduce exposed jam points, and provide controlled movement across a smooth surface.

Mechanical conveyors can provide more flexibility when part geometry is unpredictable or likely to change. However, they need to be designed with the right belt style, pitch, cleats, and infeed conditions to prevent jams.

The most reliable system is one that is built around the reality of the application, not just the expected or average part. Defining the edge cases upfront helps prevent problems before they reach production.

FAQ

What causes irregular metal parts to jam on a conveyor?

Irregular metal parts often jam because they rotate, overlap, bridge, stack, or become trapped between conveyor components. This usually happens when the conveyor is not designed around the full range of part sizes and shapes.

Are magnetic conveyors good for irregular metal parts?

Magnetic conveyors can be a good choice for irregular ferrous metal parts when the part size range is clearly defined. They use internal magnets to move material across a smooth, enclosed surface, which helps reduce common jam points.

Why does part length matter on a magnetic conveyor?

If a part is too long, it can span across multiple magnetic zones at the same time. One magnet may pull the part forward while another holds it back, which can cause hesitation, buildup, or jamming.

What conveyor is best for small metal parts?

For small ferrous parts, a magnetic slide conveyor is often a strong option because the smooth, enclosed slider bed keeps parts contained. Small parts are less likely to fall into gaps or become trapped in moving components.

When should you use a steel hinge belt conveyor instead?

A steel hinge belt conveyor may be better when part sizes are unknown, changing, non-ferrous, mixed, or too irregular for a magnetic conveyor design. Cleats and other belt features can help physically carry difficult parts forward.

How can you reduce jams at the conveyor infeed?

Use chutes, guides, hoppers, or controlled feed systems to manage how parts enter the conveyor. Reducing random dumping, stacking, and poor part orientation can greatly improve conveyor performance.

What information is needed before choosing a conveyor for irregular parts?

You should define the smallest part, largest part, maximum length, thickness, weight, material type, production rate, loading method, and whether future parts may change. This helps the conveyor manufacturer design the system correctly.
